✔ AISI 316L Stainless Steel Tank — Premium Corrosion Resistance — The tank is constructed from AISI 316L stainless steel, pickled and passivated, and precision-welded using TIG and Plasma technology.
✔ Integral Air Source Heat Pump — Renewable Energy Utilisation — The integrated air source heat pump harnesses renewable ambient energy and recovered waste heat, significantly reducing electrical energy consumption compared to conventional direct electric water heating.

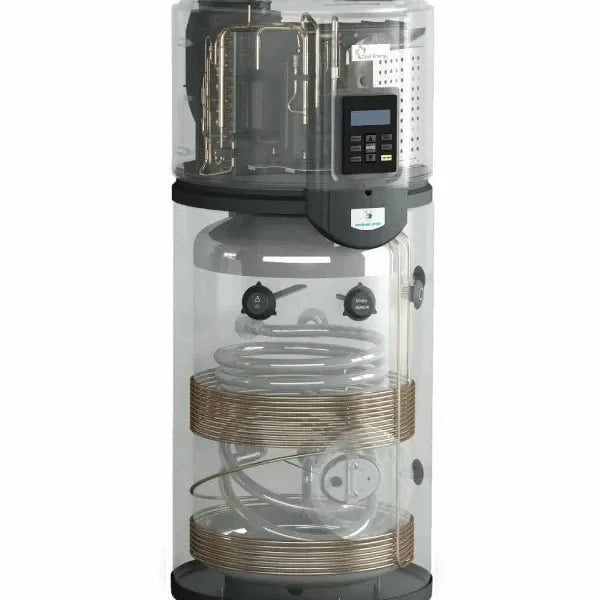

✔ External Condenser Coil Configuration — Optimised Heat Transfer — The heat pump condenser coil is wrapped directly around the outside of the tank, maximising the heat transfer surface area and delivering efficient, consistent thermal performance throughout the cylinder volume.
✔ Quiet Toshiba Rotary Compressor — Near-Silent Operation — A Toshiba rotary compressor provides reliable, high-efficiency compression with minimal acoustic output.
✔ Wide Operating Range — -20°C to +43°C Ambient — Designed to operate across an exceptionally broad ambient temperature range of -20°C to +43°C, ensuring reliable hot water production throughout the year regardless of external conditions.
✔ Ducted Air Supply and Exhaust — Flexible Heat Source Integration — Air supply and exhaust connections support ducted configurations, allowing the unit to draw from external ambient air, waste heat sources, or internal spaces.
✔ Large 1″ Solar Coil — Secondary Heat Source Ready as Standard — A large 1″ solar coil is fitted as standard, enabling direct integration with solar thermal collectors as a secondary heat source without additional modification.
✔ Optional 3kW Independent Element — Solar PV Diversion Ready — An additional 3kW independent heating element can be added to accept diverted solar PV energy or provide backup heating capacity.
✔ Anti-Titanium Electronic Anode — Advanced Corrosion Protection — The anti-corrosion titanium electronic anode provides active, maintenance-free cathodic protection throughout the cylinder service life.
✔ Automatic Anti-Legionella Cycle — Compliance Without Intervention — An integrated automatic anti-legionella cycle periodically raises stored water temperature to eliminate bacterial risk, supporting regulatory compliance without requiring manual activation.
✔ Modbus Connectivity and Smart Grid Ready — Full Modbus integration enables connection to building management systems and smart grid signals, allowing the unit to respond intelligently to grid demand, tariff signals, and wider building energy management strategies.

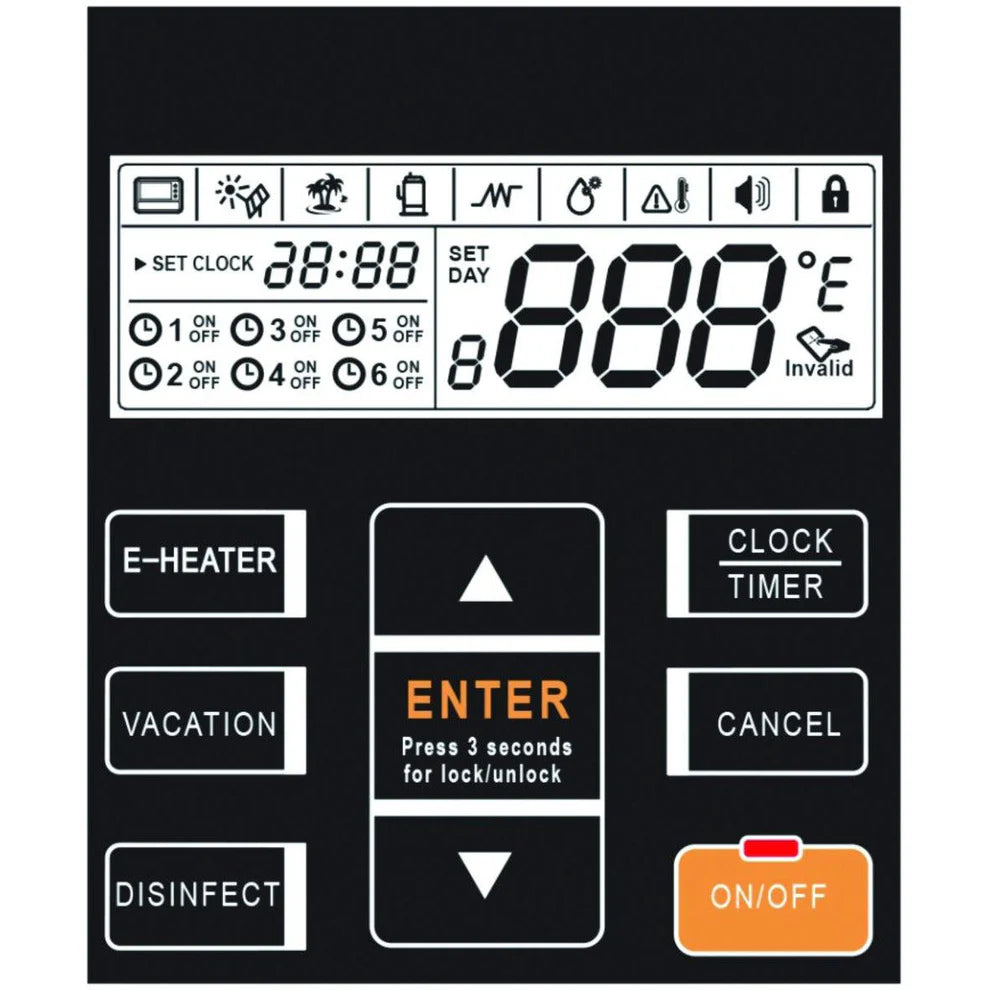

✔ Wi-Fi App Control — Remote Monitoring and Management — Integrated Wi-Fi connectivity enables full remote system monitoring, programming, and control via a dedicated app.
✔ R134a Refrigerant and Thick PU Foam Insulation — Efficient by Design — Environmentally responsible R134a refrigerant combined with thick polyurethane foam insulation and a soft grey PVC external coating delivers a thermally efficient, well-protected, and durable cylinder solution.
