✔ Integral Air Source Heat Pump — Renewable and Waste Heat Utilisation — Directly integrated heat pump harnesses ambient and recovered waste heat, significantly reducing electrical energy consumption versus direct resistance heating.
✔ Mains Pressure Unvented Output — Unvented configuration delivers consistent mains pressure hot water across domestic, commercial, and light industrial applications regardless of seasonal conditions.
✔ Fully Ducted Air Supply and Exhaust — Flexible Heat Source Integration — Supports external ambient air or internal waste heat extraction from boiler houses, kitchens, factory floors, and ceiling voids.
✔ Passive Cooling By-Product — Dual Benefit at No Extra Cost — Heat extraction from occupied spaces returns conditioned cool air to the source environment, delivering passive space cooling as a secondary benefit of the water heating process.
✔ AISI 316L Stainless Steel Tank — TIG and Plasma Welded — Pickled, passivated, and precision-welded for maximum joint integrity, corrosion resistance, and long-term potable water compliance.

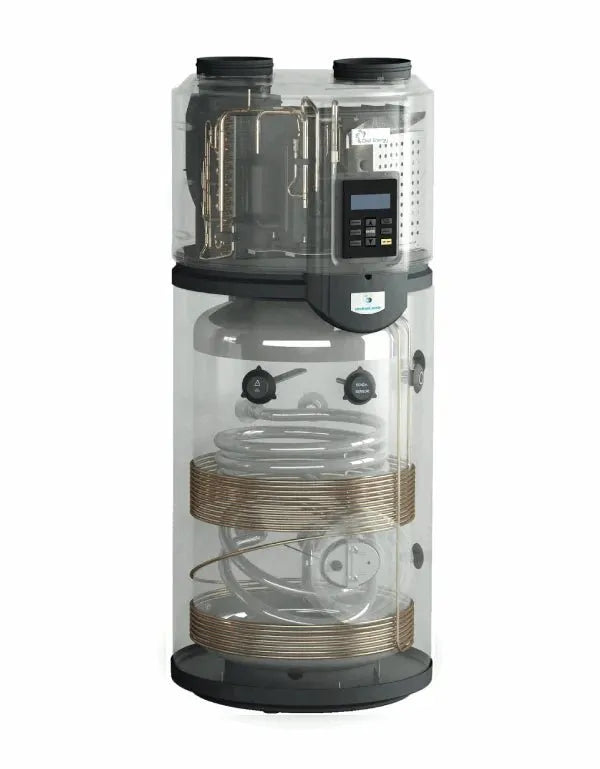

✔ External Wrap Condenser Coil — Maximum Heat Transfer Surface Area — Condenser coil wraps the full tank body externally, maximising thermal contact and optimising heat transfer efficiency throughout the stored volume.
✔ Toshiba Rotary Compressor — Low Noise, High Reliability — Efficient refrigeration cycle compression with minimal acoustic emission — suitable for continuous operation in noise-sensitive environments.
✔ -20°C to +43°C Operating Range — All-Season Performance — Wide ambient temperature envelope ensures reliable output in sub-zero winter conditions and high-temperature summer environments alike.
✔ 1″ Solar Thermal Coil — Fitted as Standard — Dedicated secondary heat exchange circuit for direct solar thermal integration without additional cylinder modification.
✔ Optional 3kW Independent Element — Solar PV Diversion and Backup — Accepts diverted solar PV generation or provides supplementary backup heating under high demand or low ambient conditions.
✔ Titanium Electronic Anode — Impressed Current Cathodic Protection — Continuous active corrosion protection, eliminating the degradation cycle and replacement requirements of conventional sacrificial anodes.
✔ Automatic Anti-Legionella Thermal Disinfection Cycle — Programmable cycle elevates stored water temperature to the required disinfection threshold, supporting L8 compliance without manual intervention.

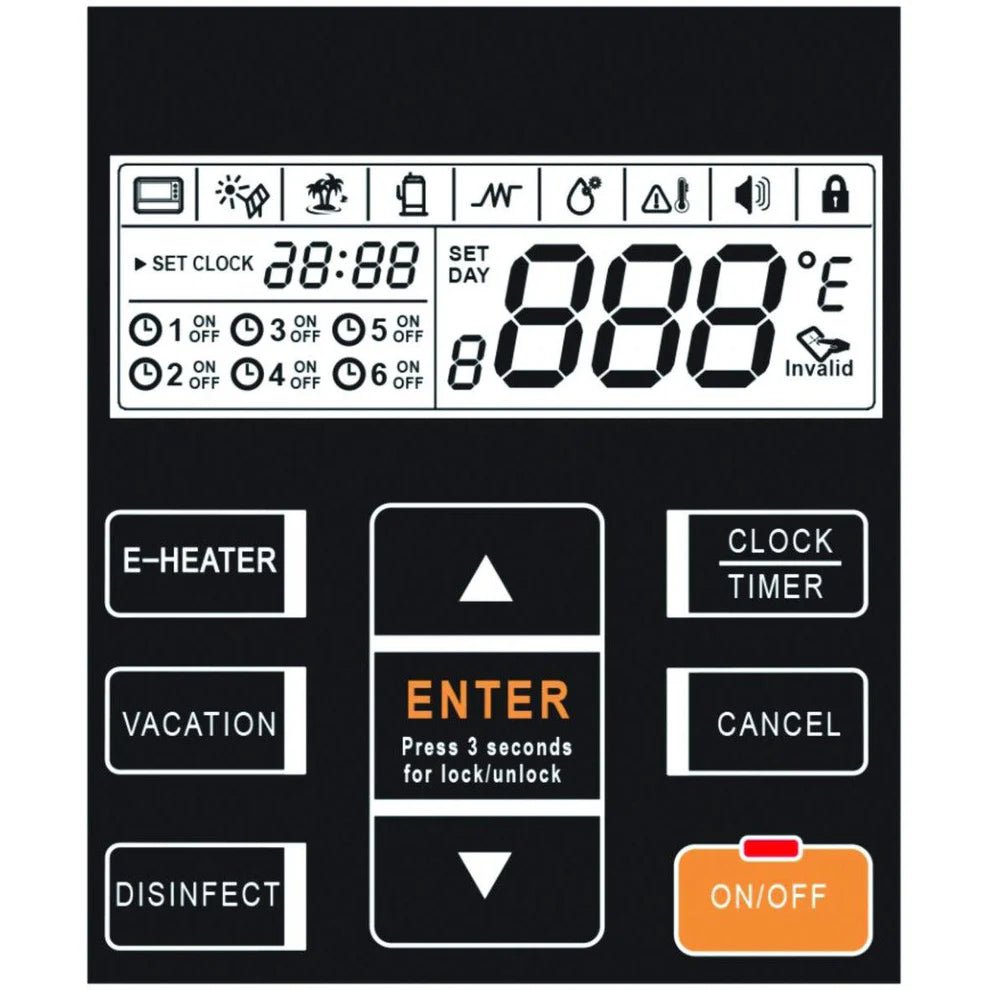

✔ Modbus, Wi-Fi, and Smart Grid Ready — Modbus RTU/TCP for BMS and SCADA integration, smart grid demand-side response capability, and full remote monitoring via onboard Wi-Fi application.
